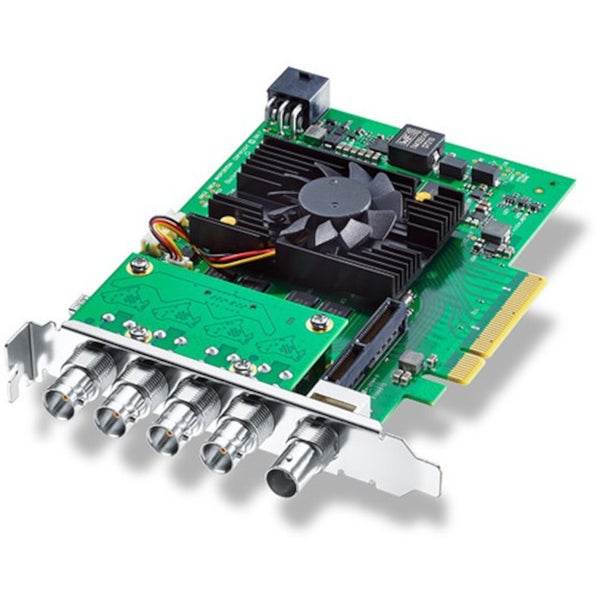

Blackmagic Design DeckLink 8K Pro PCIe Capture Card
Product no: 9000-0076-8740 Bax Music Warranty: This product comes with a 3-year warranty.

General

With the DeckLink 8K Pro, Blackmagic Design unleash the ultimate capture card for professionals. This next-gen card provides four bi-directional 12G-SDI ports and works with SD in resolutions up to DCI 8K in a maximum of 60 frames-per-second. 8 and 10-bit YUV is supported, as well as 8, 10, and 12-bit RGB colour. The fitted ports support 16 connected audio channels each, for a possible total of 64 channels, all of this confirming the DeckLink 8K Pro as the perfect partner for high-resolution, high frame-speed, and high-dynamic range next-generation workflows.

Flexible File Formats

With the DeckLink 8K Pro, you can work comfortably with both compressed video files like ProRes and DNxHD, as well as uncompressed file formats in 12-bit 4:4:4. Uncompressed videos are transferred pixel by pixel to retain the integrity of the source material without a hint of quality loss, meaning much sharper 'keying' when working with green screens, superior colour correction, and more.

Specifications

Product features

Sustainable product	not specified

Weight and dimensions including packaging

Weight (incl. packaging)	300 gr
Dimensions (incl. packaging)	18,0 x 14,0 x 3,0 cm

Product specifications

PCIe Video Card
SDI video input:
- 4 x bi-directional 12 Gb/s SD/HD/2K/4K/8K
- supports single, dual link and quad link 4:2:2/4:4:4. 2D/3D adjustable
SDI video output:
- 4 x bi-directional 12 Gb/s SD/HD/2K/4K/8K
- supports single, dual link and quad link 4:2:2/4:4:4. 2D/3D adjustable
SDI audio input:
- 16x embedded audio in HD/2K/4K
- 8x embedded audio in SD
SDI audio output:
- 16x embedded audio in 2K/HD/SD
- 64x embedded audio in 8K/4K
sync input: Tri-Sync or Black Burst
computer interface: PCI Express 8-lane Gen 3, compatible with 8 and 16 lane PCI Express slots
supported codecs:
- AVC-Intra
- AVCHD
- Canon XF MPEG2
- Digital SLR
- DV-NTSC
- DV-PAL
- DVCPRO50
- DVCPROHD
- DPX
- HDV
- XDCAM EX
- XDCAM HD
- XDCAM HD422
- DNxHD
- DNxHR
- Apple ProRes 4444
- Apple ProRes 422 HQ
- Apple ProRes 422
- Apple ProRes LT
- Apple ProRes 422 Proxy
- Uncompressed 8-bit 4:2:2
- Uncompressed 10-bit 4:2:2
- Uncompressed 10 bit 4:4:4
video standards:
- DCI 8K Video standards:
  - 8Kp: 60/59.94/50/30/29.97/25/24/23.98
- 8K Video standards:
  - 8Kp: 60/59.94/50/30/29.97/25/24/23.98
- DCI 4K:
  - 4Kp: 60/59.94/50/30/29.97/25/24/23.98
- UHD 4K:
  - 2160p: 60/59.94/50/30/29.97/25/24/23.98
- 2K:
  - DCI 2Kp: 60/59.94/50/30/29.97/25/24/23.98
  - DCI 2KPsF: 30/29.97/25/24/23.98
- HD:
  - 1080p: 60/59.94/50/30/29.97/25/24/23.98
  - 1080PsF: 30/29.97/25/24/23.98
  - 1080i: 60/59.94/50
  - 720p: 60/59.94/50
- SD:
  - 525i: 59.94
  - 625i: 50
SDI compliance:
- SMPTE 259M, SMPTE 292M, SMPTE 296M SMPTE 372M, SMPTE 425M, SMPTE 435, SMPTE 2081, SMPTE 2082, ITU-R BT.656 and ITU-R BT.601
SDI meta data support: RP 188/SMPTE 12M-2 and closed captioning
sampling:
- video:
  - 4:2:2, 4:4:4
- audio:
  - TV-standaard sample rate of 48 kHz at 24-bit
colour precision:
SDI: 8, 10, 12-bit RGB 4:4:4 in al modes up to 8K DCI 30p and 8, 10-bit YUV 4:2:2 in all modes
colour space: REC 601, REC 709, REC 2020
deep colour support
supported operating systems:
- macOS 10.12 Sierra, macOS High Sierra 10.13 or later
- Windows 7, 8.1, 10 all 64-bit
- Linux
power consumption: 19W
dimensions (depth): 16.38cm
weight: 228 g
included: SD-card with software and manual
