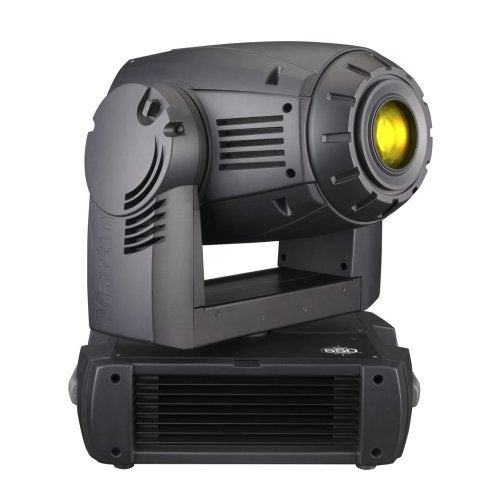

Martin Mac 550 profile effect

General

We kunnen het niet genoeg benadrukkken. Over de totale looptijd van uw investering zijn de kosten van een Martin Mac movinghead lager dan de kosten van elk ander merk moving head. De basis aanschafprijs van een Martin is weliswaar hoger t.o.v. andere movingheads, daar staat wel tegenover.

• Lage onderhoudskosten. Martin movingheads zijn door en door betrouwbaar.
• Extreem hoge restwaarde. Een 5 jaar oude Mac wordt nu nog verkocht voor 65 - 70% van de oorspronkelijke investering. Dus slechts 6% afschrijving per jaar.
• Technisch superieur, de lichtopbrengt van de martin en de afwerking zijn niet te vergelijken met de vele andere mh`s op de markt.
• Elk zelfrespecterend verhuurbedrijf heeft mac`s in zijn assortiment, dus eenvoudig bij te huren.
• Martin heeft zijn reputatie en daardoor weet u dat er in kwaliteit wordt geinvesteerd.

The MAC 550 features unprecedented output for a 400 W profile, astounding graphics and animation, a motorized zoom and new color and gobo motors.

Zoom & Focus

The MAC 550’s variable motorized zoom and focus expands the beam continuously from 14° – 30° with high precision and sharpness.

Gobo Animation

The MAC 550 features a DMX–controlled gobo animation system - unique to a mid-sized luminare. It is specially engineered to create animated effects such as clouded skies, reflective seas and flames. The system comes complete with one animation wheel, with further wheels available to expand your library. Each wheel is quickly changed via a magnetic coupling without the use of tools.

Optics

Powerful 400W illumination, enhanced by a multi-layered, dichroic reflector, gives the MAC 550 unprecedented optical efficiency. Advances in lamp technology have allowed a significant and measurable amplification to lumen output, far surpassing the 550’s peers.

Color

The MAC 550 features two color wheels, each with eight slots plus open. As with all products in the MAC family, ergonomics and functionality are paramount. In the 550, the color selection may be changed with ease to offer you a seemingly limitless array of color combinations.

Gobos

Glass, textured glass or metal gobos fit within a six-position rotating & indexing gobo wheel, (plus open) and a nine-position static gobo wheel, (plus open). The gobo system permits 16-bit control for extreme accuracy with all gobos easily interchangeable, removing any obstacle to your creativity.

Iris & Prism

A bi-directional, 3-facet prism rotates at variable speeds, adding unique effects to gobo projection. The prism can also be replaced giving lighting professionals further options for customization.

A motorized iris allows you to resize the beam quickly and accurately for fast effects with smaller beam sizes.

Pan/Tilt

New pan and tilt motors, combined with state of the art driver technology, give faster-than-ever movement for a mid-sized fixture with a pan movement of 540o and a tilt range of 246o

The MAC 550 employs an intelligent position correction system that automatically returns the luminare to its original position, should it accidentally be knocked out of place. A multi position tilt lock mechanism is also featured to permit easy maintenance and handling.

Dimmer/Shutter

A full range dimmer/shutter is very accurate and allows for smooth color and effect transitions by varying the intensity of the light output. Accelerated strobe effects are possible up to 20 Hz. The 550 also contains head and base temperature sensors to ensure that fan speeds are kept to a minimum; bringing noise levels right down.

Modular design

The design of the MAC 550 is unashamedly inspired by the larger MAC 2000. This award winning design is highly efficient, making service and maintenance easier with fast access to modules and critical components.

Electrical Power Supply

A switchable power supply covers worldwide voltages and frequencies allowing the fixture to operate anywhere in the world.

Silence

The MAC 550 contains head and base temperature sensors to ensure that fan speeds are kept to a minimum; bringing noise levels right down to suit theatre and TV studio applications.

Communications

The MAC 550 is DMX512-controllable, equipped with both 3-pin and 5-pin XLR in/out sockets, and totally compatible with coming future standards such as ACN or Ethernet-based protocol.

Transportation

The Martin flight case, designed for the MAC family, is recognized in the industry as one of the best purpose-built cases for the transportation of lighting fixtures. Made of durable ply, it is covered in a tough water-repellent coating for added protection.
