Antelope Audio Discrete 4 + Edge + Premium FX Collection modelling microphone bundle

no reviews yet

Discontinued, this product can no longer be ordered.

No alternatives found

Not sure if the Antelope Audio Discrete 4 + Edge + Premium FX Collection modelling microphone bundle is for you? Do a Choice Check. Start Choice Checker

Product information
Videos (3)
360° Photo
Reviews (0)
News and items (10)

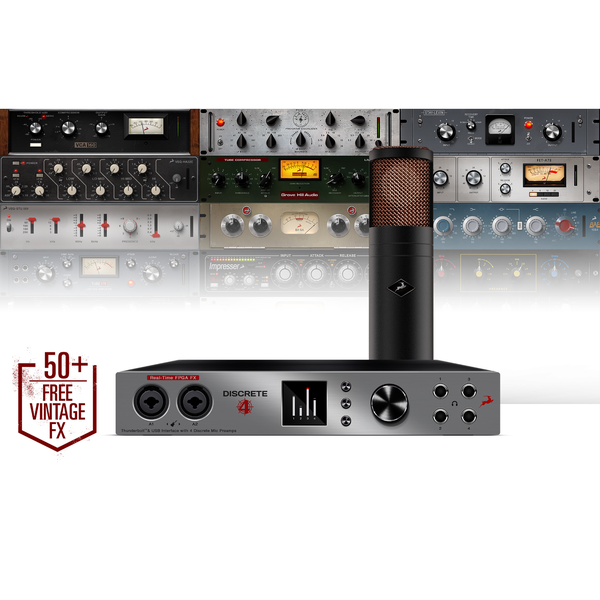

Antelope Audio Discrete 4 + Edge + Premium FX Collection modelling microphone bundle
Product no: 9000-0038-8649 Bax Music Warranty: This product comes with a 3-year warranty.

General

Antelope Audio offers the ultimate recording bundle: the Discrete 4 audio interface plus the Edge large-diaphragm modelling microphone. Experience top-quality conversion and modelling! Antelope Audio have proven themselves to be the market leader in the world of pro audio as the pioneers of high-end clock generators and converters. Their FPGA platform offers enormous flexibility in modelling possibilities, and this bundle gives you access to all 16 AFX effects instances. This means you can stack 16 tracks/channels loaded with FPGA effects in your DAW without burdening your computer's processor.

Accusonics microphone modelling

The Accusonic engine is the next logical step in Antelope's modelling technology in collaboration with their FPGA platform. The engine offers you all the audio perks of some of the most legendary microphones ever made. Choose your favourite mic, and a preamp if desired, and start recording directly with these nostalgic sounds in real time. If you prefer, you can also apply the modelling technology to your signal later in your DAW and then tweak your sound to ultimate perfection. The Discrete 4 and all its connection options combined with Antemope's Accusonic engine give you the recording possibilities you've always dreamt of!

Specifications

Product features

19 inches	no
Tube microphone	no
Studio bundle components	audio interface, microphone
Computer ports	USB, Thunderbolt
Phantom power	yes
Suitable for operating system	Apple OSX / Mac OS, Microsoft Windows
Microphone sensitivity (dBV/PA)	not applicable
Microphone impedance	not specified
Low-cut filter	no
Maximum sample rate	192 kHz
Maximum SPL	not specified
Maximum frequency	20 - 20.9 kHz
Included data cable	USB cable
Included software	none
Microphone accessories	shock mount, pop filter, cable
MIDI I/O (din connector)	none
Minimum frequency	20 - 21 Hz
Pad switch	no
Polar pattern	multi pattern
Software included	no
Stereo	no
Type of microphone	condenser set

Weight and dimensions including packaging

Weight (incl. packaging)	5,5 kg
Dimensions (incl. packaging)	42,0 x 34,0 x 16,0 cm

Product specifications

Thunderbolt/USB audio interface
inputs:
- 4x TRS/XLR
- 1x word clock
- 1x S/PDIF
- 1x ADAT (16x channels)
outputs:
- 1x Wordclock
- 1x S/PDIF
- 1x ADAT (16x channels)
- 1 x monitor (left and right)
- 4x line out
- 4x headphones
built-in FPGA effects (AFX)
total incoming audio channels: 14
total outgoing audio channels: 20
sample rates: 32, 44.1, 48, 88.2, 96, 176.4, 192 kHz
USB I/O: 24x channels, 24-bit
Thunderbolt I/O: 32x channels
Acoustically Focused Clocking (AFC) jitter management
talkback function
create up to 4 separate headphone mixes
store and load presets for easy workflow (mix/routing/effects)
Discrete 4 app iOS and Android for easy management
power consumption: 15 W
dimensions: 261 x 44 x 208 mm
weight: 1.7 kg
included:
- power adapter

Edge modelling microphone:

large-diaphragm modelling microphone
diaphragm: condenser, dual gold-spattered diaphragm (10 micron)
frequency response: 20 Hz - 20 kHz
sensitivity: -36 dB (-1 - +3 dB)
THV + N: -116 dB
power supply: +48V DC phantom power
connector: 5-pin XLR
included:
- splitter cable
- shock mount
- pop filter
