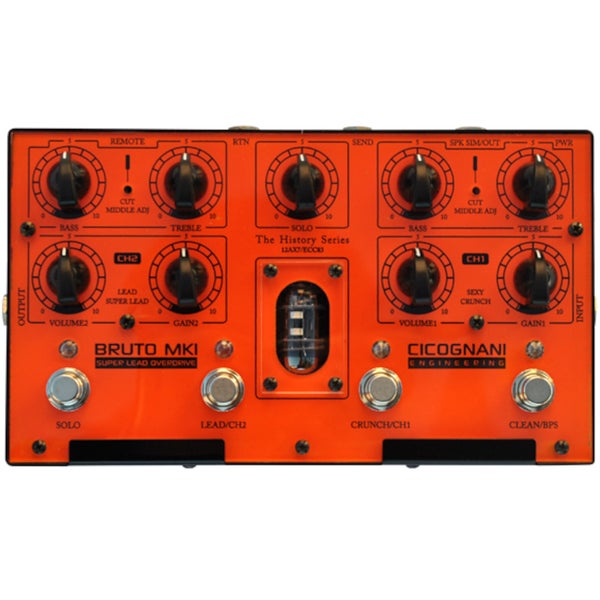

Cicognani Bruto MK1

Cicognani Bruto MK1
Product no: 9000-0091-2449 Bax Music Warranty: This product comes with a 3-year warranty.

General

Build custom tone from the ground up with the high-grade help of the Cicognani Bruto MKI overdrive. A mass of overdrive-shaping options packed up in a tight four-button pedal, this chunk of gear takes all its cues from high-quality valve-amplifiers. The Bruto is a fully analogue overdrive-and-preamp in one, and even comes with a real valve planted right in the middle of the control panel. Set up for home rehearsals and studio work as well as stage work, this overdrive can be combined with an amp or plugged straight into an audio interface via a built-in speaker simulator.

The Cicognani Bruto MKI: Maximum Versatility

The Bruto MKI supplies two separate channels plus a solo boost and a clean channel on the side. When the overdrive is engaged, everything from a mild boost to high-gain overdrive can be dialled in via the nine-pot-strong bank of controls, and triggered via the set of four footswitches. Finished with an FX loop, this stompbox supports seamless integration with your rig and offers maximum sonic versatility.

Specifications

Product features

Adapter included	no
Centre positive/negative	centre negative
Sustainable product	not specified
Mini pedal	no
True bypass	yes
Power supply plug	barrel 2.1 mm (inner diameter)
Type of distortion	overdrive
Variable voltage	no
Can be powered by battery	no
Voltage	9 V, 12 V
Equipped with tube	yes

Weight and dimensions including packaging

Weight (incl. packaging)	1,4 kg
Dimensions (incl. packaging)	25,0 x 15,0 x 10,0 cm

Product specifications

Cicognani Bruto MKI
Overdrive/preamp pedal
power in: 9 to 12V DC (Centre Negative)
power consumption: 300 to max. 500mA
S/N ratio: 58dB
max. gain: 97dB
boost: 0 to +6db
input impedance: <1M Ohm
output Impedance: <100K Ohms
send impedance: <47K Ohms
return impedance: 47K Ohms
rec out impedance: <47K Ohm
serial Loop FX: 0db
max. return signal: 0.5Vpp
max. speaker sim out signal: 0.5Vpp
weight: 0.7 kg
dimensions: 220 x 130 x 50mm (8.6" x 5.1" x 1.96")
ports: main power (DC 2.1mm)
guitar input: 6.3mm mono jack
amp output: 6.3mm mono jack
Please note: A power supply does not come included with this pedal.

Description	Type	Language	Extension
Handleiding Engels	Manual	Dutch, English
